The value of designing with expensive CAD modeling systems is only fully realized when the power of 3D visualization and geometry is utilized in downstream functions. Find out more...

Visualize

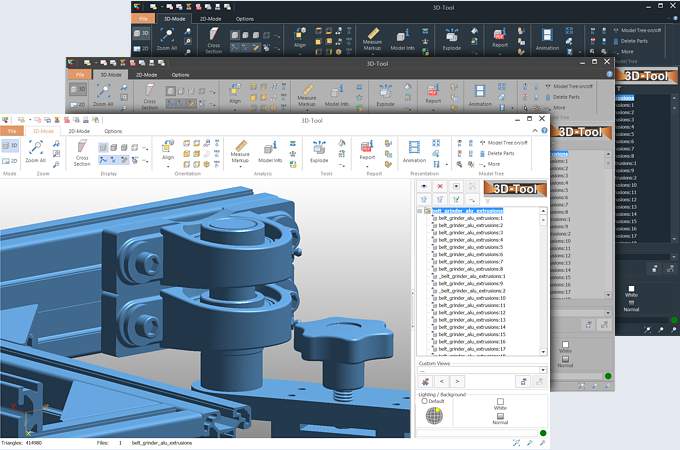

Dynamic viewing of 3D CAD models

Dynamic 3D and 2D viewing without an expensive CAD system


Several verification and validation criteria of your product design can be checked early in the development process with our low cost tool set. Find out more...

Analyze

3D-Viewer featuring professional measurement functions including draft and wall thickness analysis

Geometric Analysis and measurement of 3D models and 2D drawings


The 3D-NativeCAD Converter reads CAD system 3D models and exports them in common CAD neutral exchange formats.
Convert your customer and supplier models into formats your downstream applications can use, such as CMM or CAM software. Find out more...

Convert

Convert CATIA, Siemens NX, SolidWorks, SolidEdge, Creo, AutoCAD, Inventor und Rhino - files

Geometry data exchange between CAD programs

Dynamic 3D and 2D Viewing

CAD viewer with an intuitive and modern interface in German, English, French and Korean

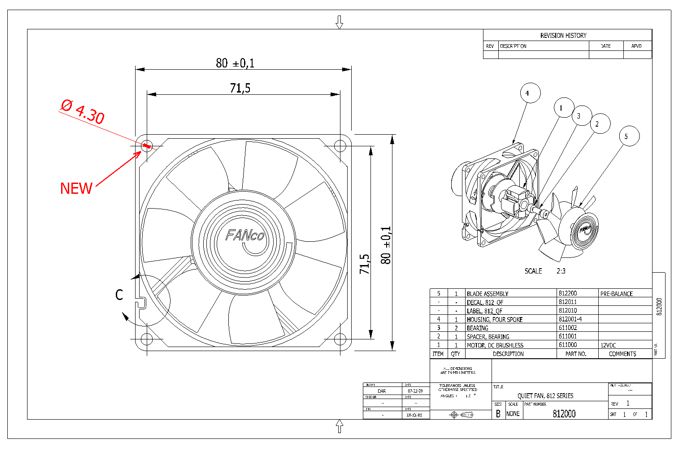

Viewer for DWG, CATIA, and SolidWorks - Drawings

With 3D-Tool you print drawings true to scale, edit or delete drawing elements and add dimensions and markups.

3D-Tool supports 2D drawings in the formats DXF, DWG, HPGL and, in the Premium version, also drawings from CATIA and SolidWorks.

3D CAD collaboration via the free 3D-Tool Viewer or 3D-PDF

Presentation and Documentation

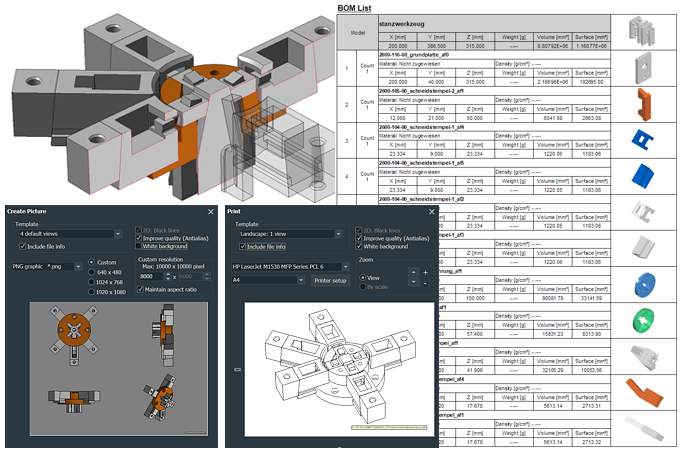

With just a few clicks you can create and save detailed 3D views of your models for presentations and meetings as well as for printouts and images.

Parts and assemblies can be hidden, made transparent or shown in different render modes. Cross-sections and exploded views can be combined and even animated.

3D-Tool also generates user-defined reports (BOM, model overview, dimensions, weights) in PDF, RTF and HTML formats.

›› Screenshots

Measure and Analyze 3D Models

Information

3D-Tool provides information and measurement tools to make your order processing tasks easier.

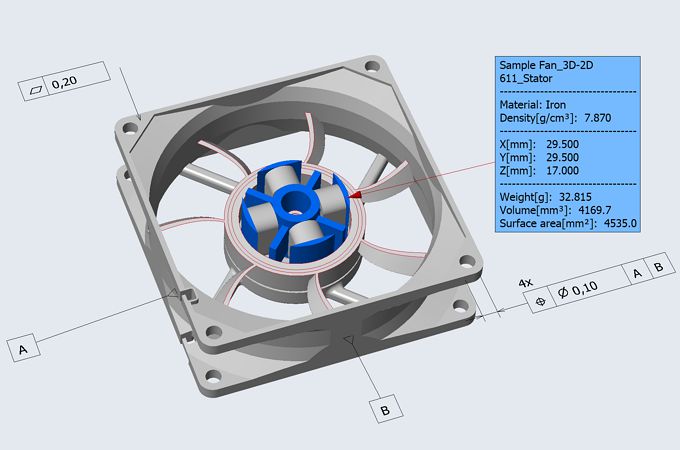

The model information tool with material database provides dimensions, surface, volume and weight of parts and assemblies quickly and easily. 3D-Tool Premium also supports the display of product manufacturing information (PMI).

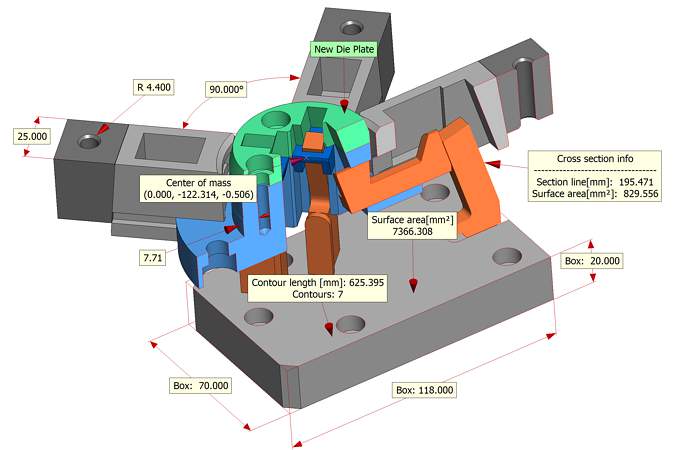

3D tools for measuring distances, angles, radii, wall thicknesses and free spaces

Analysis

Get the information you need to estimate material volumes, tool sizing, packaging dimensions, etc.

The Tooling Analysis shows draft angles, and identifies undercut issues, along with the projected area of ​​your models.

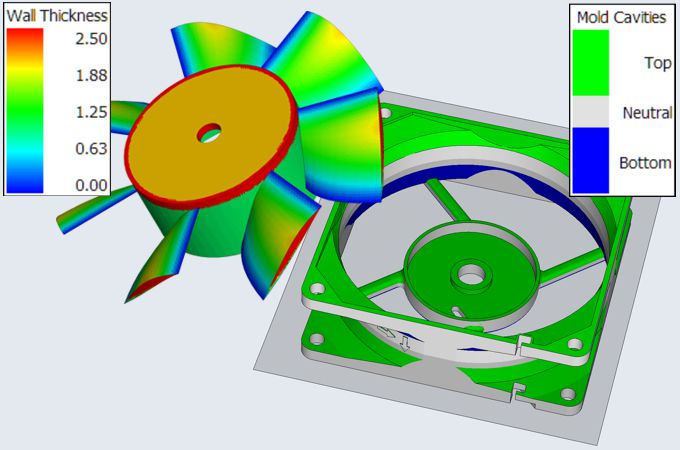

Perform Wall Thickness Analysis using the 'ball method' (maximum sphere size); which provides much more insight to make better design decisions. The results show wall thicknesses as a color scale and the model comparison makes differences between models obvious.

›› More functions and features

Data Exchange / CAD Interoperability

3D-Tool supports STEP, IGES, VDA, SAT, Parasolid, CATIA, Siemens NX, SolidWorks, SolidEdge, Creo, Inventor and Rhino

The 3D-NativeCAD Converter

Look amazing in your customers eyes... by not requiring tight requirements on their exporting of models in specific file types. Use 3D-Tool Premium Converter as a universal CAD model file reader, and converter to your own internal CAD file needs (Quoting, NC, Mold design, FEM Analysis).

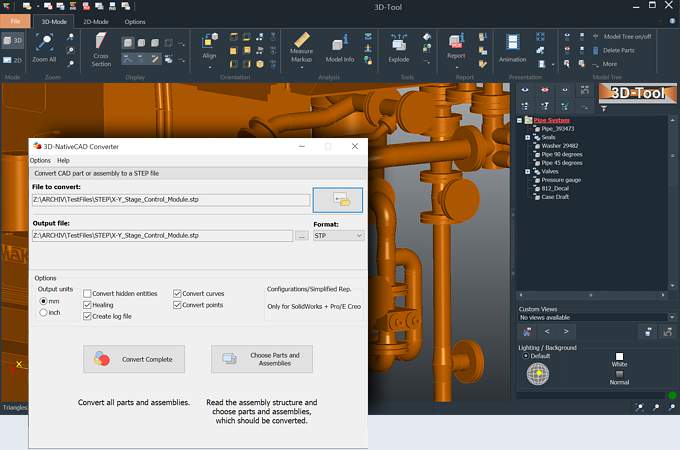

The 3D-NativeCAD Converter allows the conversion of 3D models from the most commonly used CAD systems into the 3D exchange formats STEP, IGES, Parasolid X_T, VDA and SAT.

›› 3D-NativeCAD Converter

3D-Tool Basic, Advanced and Premium

3D-Tool Premium and the 3D-NativeCAD Converter

Basic

With a basic license, the viewer can open polygon and surface patch 3D visualization formats such as STL, 3DS, OBJ, PLY and VRML, as well as 2D drawings in DWG, DXF and HPGL formats.

Advanced

With an Advanced license, the 3D vector based exchange formats STEP, IGES, VDA, SAT and Parasolid can be opened.

Premium

With a premium license you get high-performance interfaces and the 3D-NativeCAD converter. The premium interfaces support native 3D models from CATIA, Siemens NX, Creo, Inventor, SolidEdge, SolidWorks, Rhino and AutoCAD, as well as the 3D exchange formats STEP, IGES, VDA, SAT, Parasolid and JT.
