Tips & Tricks
The 3D-Tool Quick Tips

Tip 1 of 15

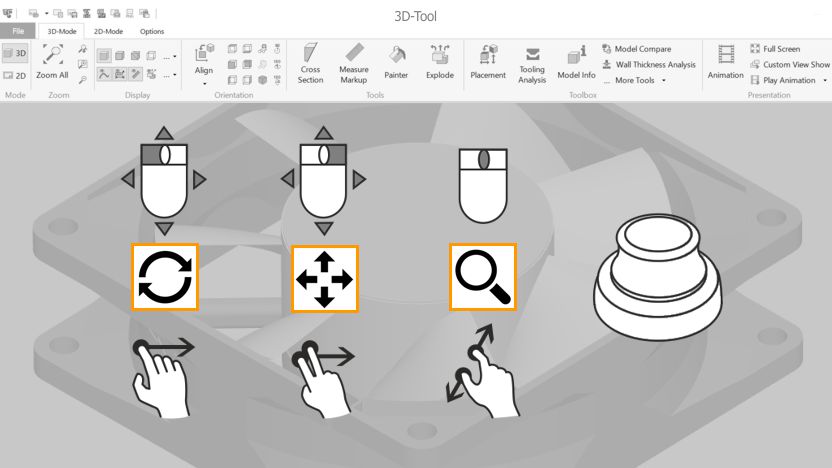

Mouse actions and touch gestures of the 3D-Tool CAD Viewer

Use the left mouse button to rotate and the right mouse button to move the view. Use the mouse wheel to zoom in and out. 3D-Tool also supports 3Dconnexion 3D-mouses and touch gestures. The view can also be rotated using the arrow keys on the keyboard.

Tip 2 of 15

The new color styles of the 3D-Tool CAD Viewer

Use the Setting Program Style to select one of the 5 color styles for the 3D-Tool program interface. For the Free Viewer and 3D-Tool EXE files only the Windows10 Style is available.

Tip 3 of 15

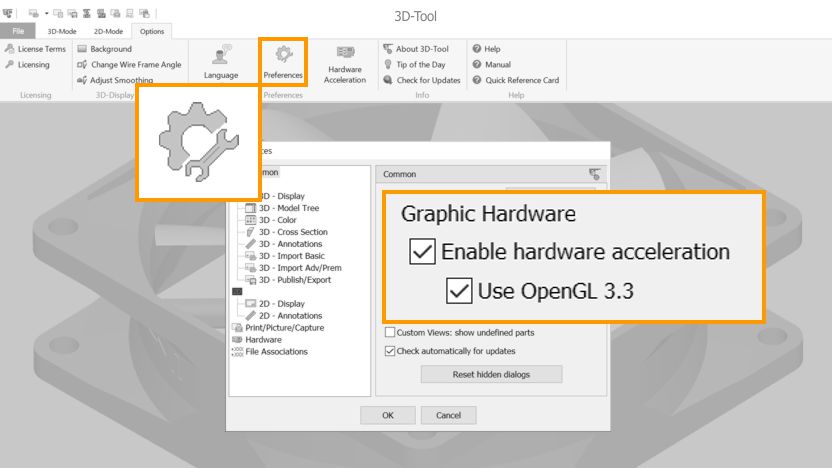

Activation of the hardware acceleration in the 3D-Tool CAD Viewer

Optimize the 3D-performance by activating the Hardware Acceleration and the OpenGL3.3 support in the 3D-Tool Preferences.

Tip 4 of 15

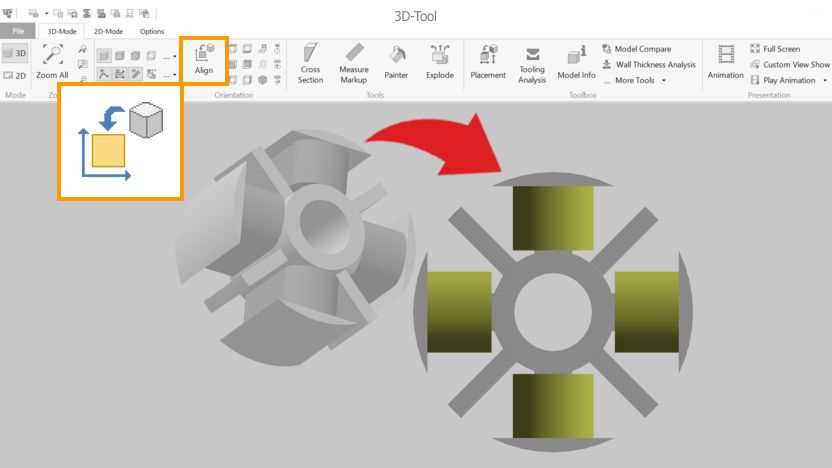

Align the 3D CAD model in the 3D view

Use Align View to quickly rotate the view into the next matching default view. The views from left, right, top, bottom, back and front are also directly selectable.

Tip 5 of 15

Save exploded views and cross-sections

Use Custom Views to store the state of the display including exploded parts and cross sections. This allows to quickly switch between views and is useful for printing and creating pictures.

Tip 6 of 15

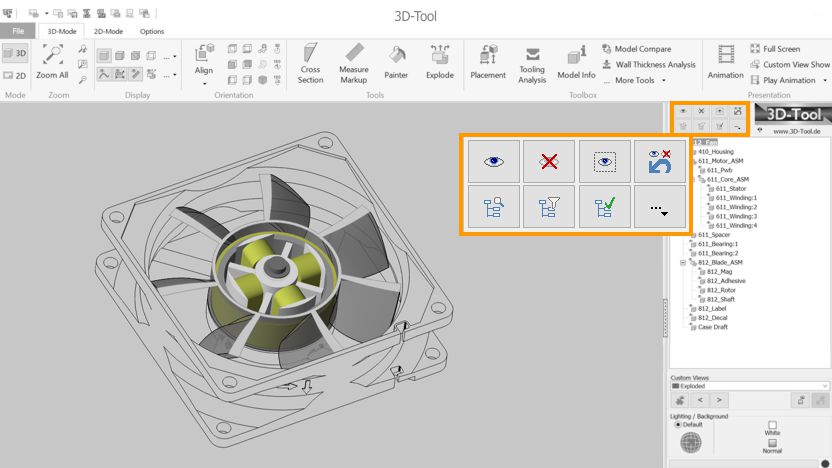

Search and filter functions in the 3D-Tool model tree

With Report you create user-defined reports with a bill of material, a model overview, dimensions and weights and output the reports as PDF, RTF or HTML files.

Tip 7 of 15

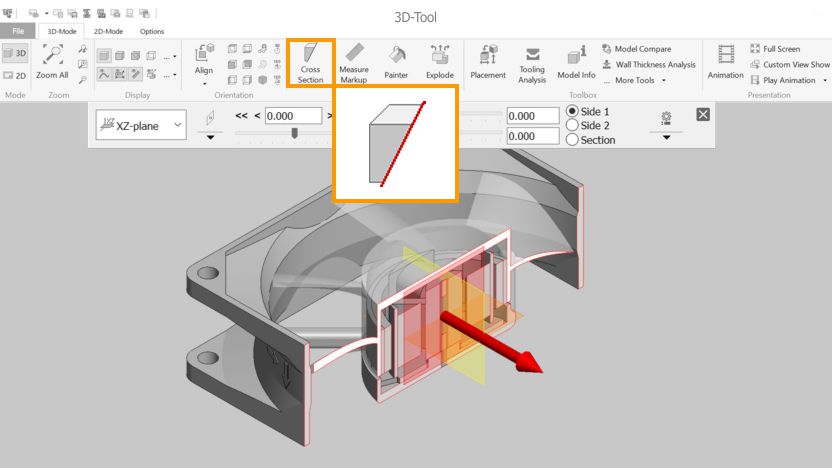

Dynamic cross-sections with the 3D-Tool CAD Viewer and Converter

Use Cross Section to access the internal parts of a model. The cross section controls offer multiple functions to align the cross section.

Tip 8 of 15

Measuring and markup in 3D CAD models

Use Measure and Markup not only to add 3D dimensions and 3D notes. You may also add a background text or image, for example a company logo.

Tip 9 of 15

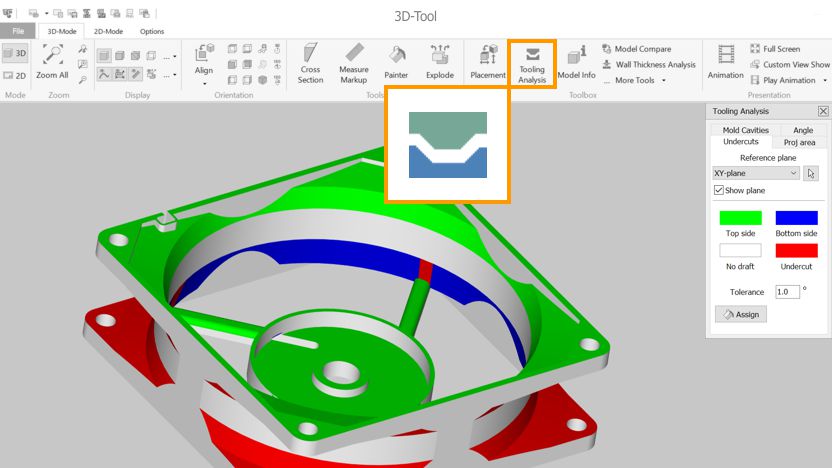

The 3D-Tool Tooling Analysing with undercuts and angle

Use Tooling to display drafts and their angles in different colors, to check for undercuts, and to calculate the projected area of the model.

Tip 10 of 15

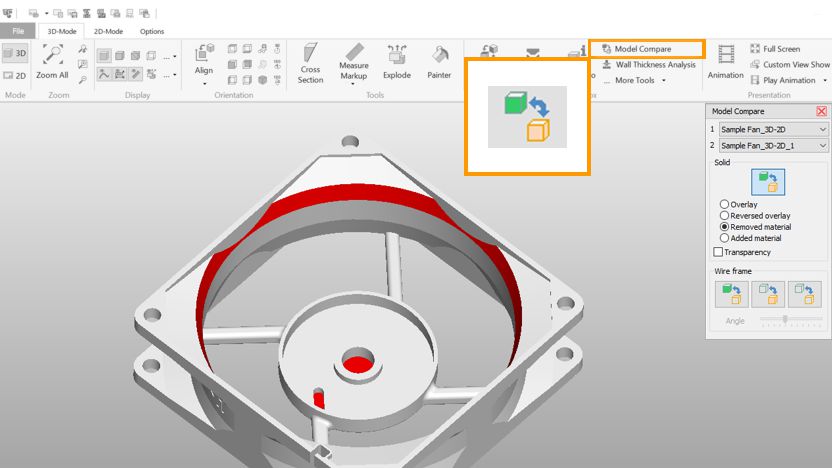

With the 3D-Tool Model Compare tool, differences between 3D CAD models become visible

Use Model Compare to identify differences between two models, as they are highlighted in color.

Tip 11 of 15

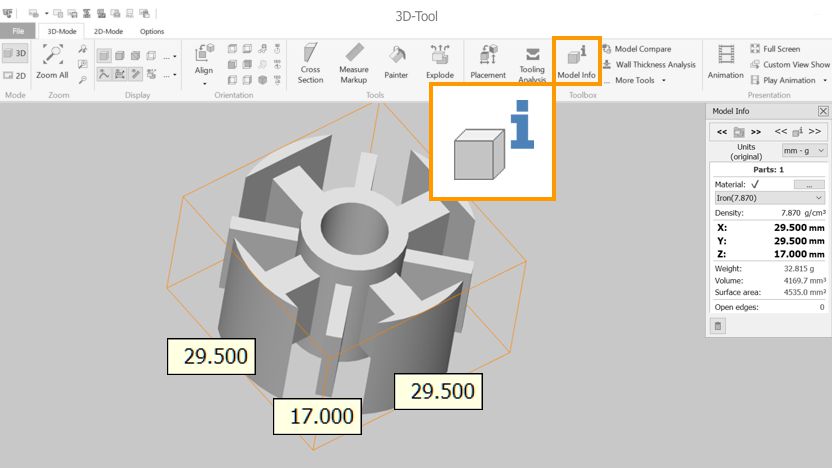

Volume, surface, dimensions and weight of 3D CAD parts

Use Model Info to display the volume, surface area, dimensions, weight and center of mass of parts and assemblies. You will be supported by the 3D-Tool material database.

Tip 12 of 15

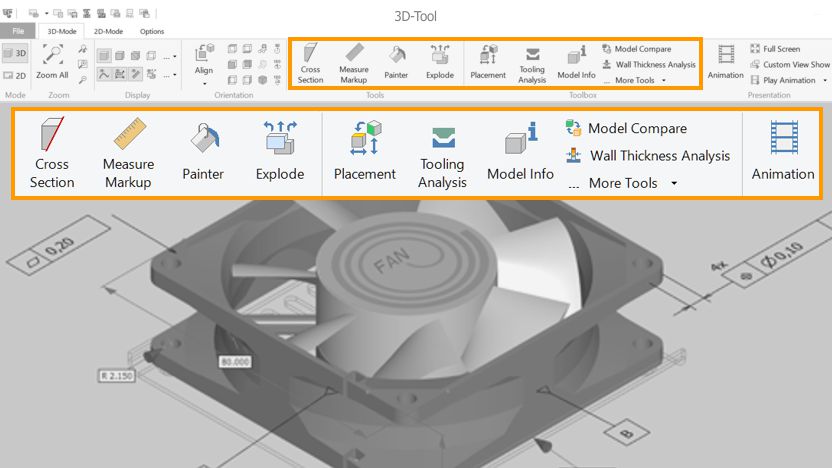

3D-Tool is a CAD viewer with many parctical tools

With Wall Thickness you display the wall thicknesses of a model as so-called heat maps. The calculation is carried out using the single beam or spherical method.

Tip 13 of 15

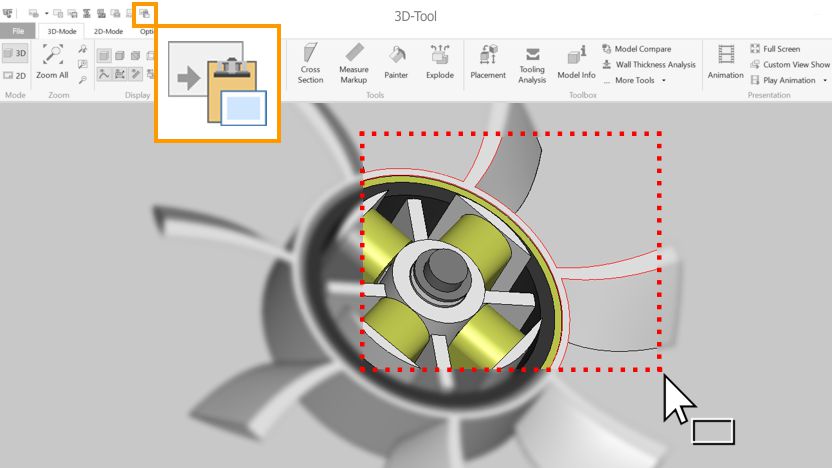

CAD viewer with integrated screenshot function

Use Capture to Clipboard to copy a detail of the view to the Clipboard. A single click instead of the marquee select will copy the complete view.

Tip 14 of 15

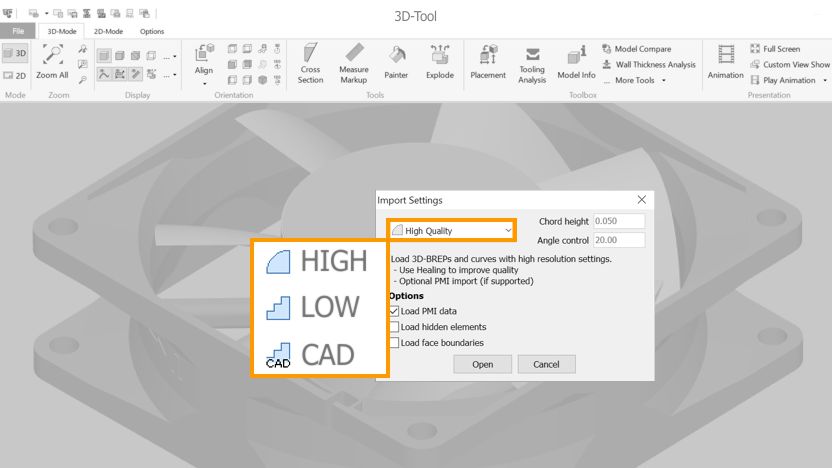

The import settings of the 3D-Tool CAD viewer and converter

For a smooth display of big models Advanced and Premium users can reduce the import quality. Additionally, the Premium version allows a fast import of graphical CAD data from native CAD models.

Tip 15 of 15

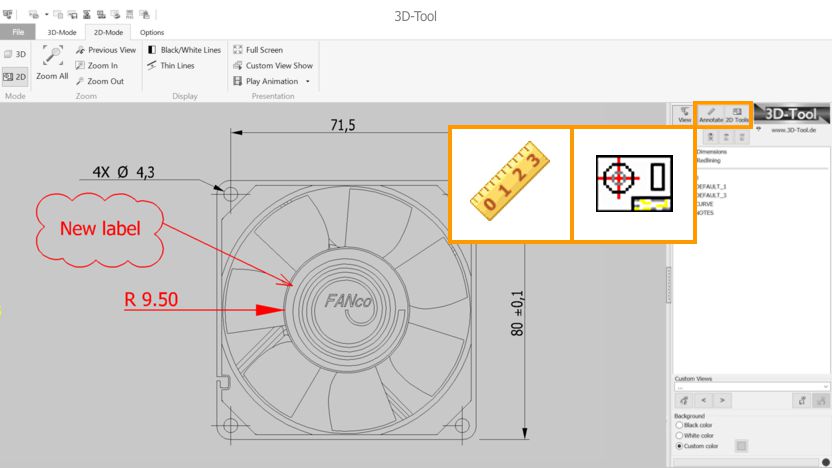

Open and measure DWG DXF CATDrawing and SLDDRW

In 2D-mode use the Measure Markup tool to add dimensions, markups and pictures. Use the Edit Drawing tool to edit and delete elements of the drawing.
